Start with the window, not the mesh

Find the window label or series information and photograph the screen in place. Note whether it sits indoors or outdoors, covers the whole opening or one sash, and uses pins, springs, tabs, clips or a channel. A screen that looks rectangular on the floor may have a shaped edge that matters when it goes back into the frame.

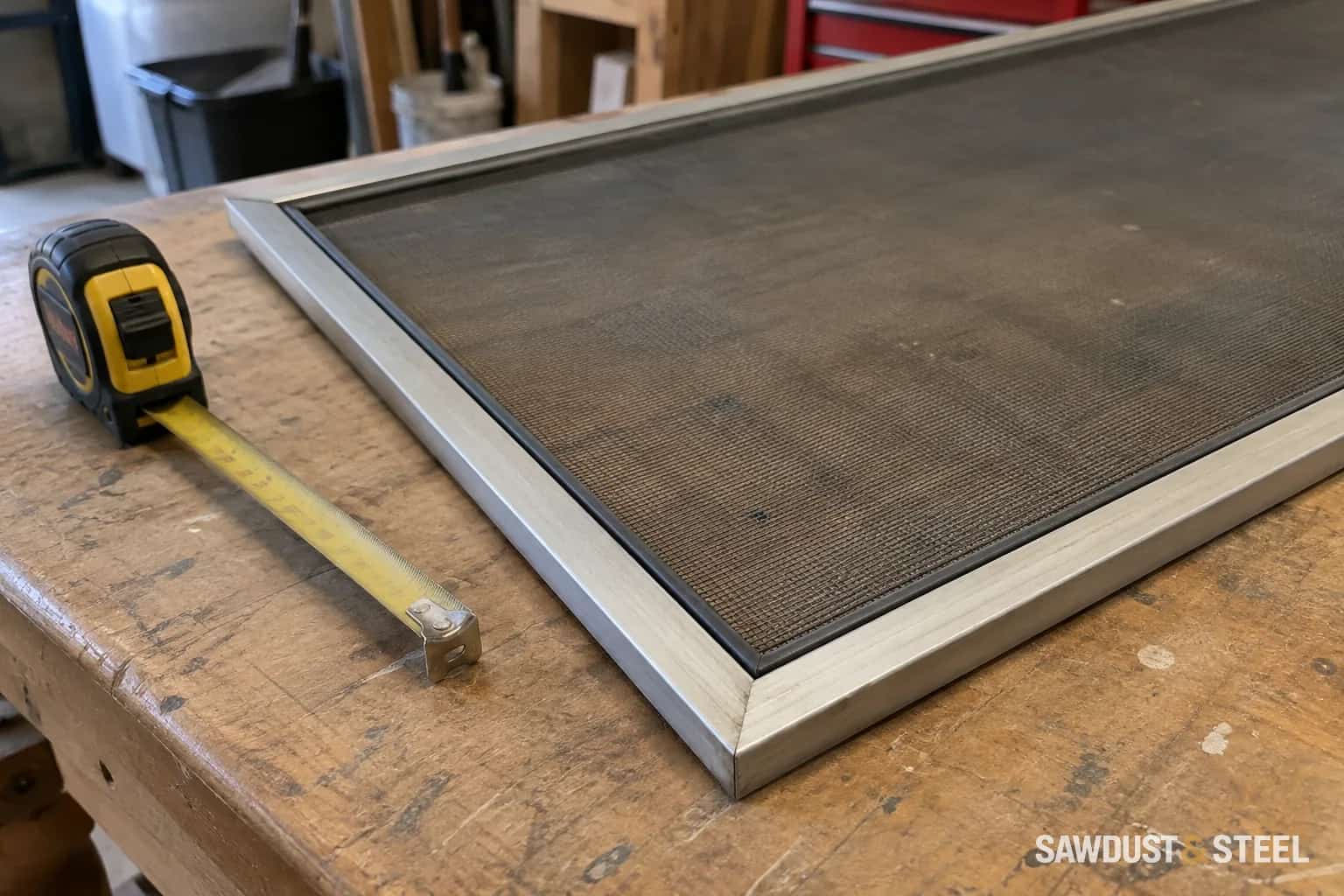

If the old screen fits correctly and is not bent, it is a useful reference. Mark its top and room side before removal. Remove it using the proper release method rather than prying at a corner. Work from a safe position and arrange help for large or elevated screens; insect mesh is not a barrier that can support a person.

Measure what the supplier actually asks for

Andersen's custom-screen guide for specific 400 Series hung windows defines measurement points and deductions for that system, illustrating why a universal subtraction is unreliable Andersen: Custom insect-screen measuring guide.

The replacement-screen order sheet

  • Width and height

    Record the specified frame or channel dimensions at the required positions.

  • Profile

    Measure frame thickness and show its edge shape in a close photograph.

  • Retention

    Locate springs, pins, pull tabs and clips from a consistent corner.

  • Orientation

    Label top, bottom, inside and outside before handing over the sketch.

For a shop-built replacement, ask whether it wants the finished outside frame size or measurements of the receiving opening. Write the units clearly and avoid rounding a fraction because it looks untidy. Measure in more than one place if the frame or opening may be distorted. Diagonal measurements can help show that an old frame is no longer square, but the supplier should decide how to accommodate the actual opening.

Do not copy a bad fit

A bowed screen, broken corner or makeshift clip can give misleading dimensions. If the old screen had to be wedged in, say so. Photograph the empty receiving channels and retainers as well as the screen. The supplier may need to measure on site or use the window's product record rather than duplicate the damaged frame.

Mesh replacement alone may be enough when the frame and hardware are sound. If the frame has lost its shape, tightening new mesh can make the distortion worse. Compare rescreening with a complete frame replacement, including any special clips that are no longer available separately.

It should fit without bowing the frame

Install according to the window's instructions. Check that retainers engage, edges sit correctly and the sash operates without rubbing the screen. Remove and reinstall it once so you know it can be serviced. A screen should not need force that bows its rails or cracks the corners. Keep the measurements and product details for the next repair.

For a rolling patio screen, use the patio-screen guide; roller engagement and track condition add another set of measurements. If the window itself will not close, fix sash and lock alignment rather than shortening the screen to hide the interference.
