Where a deck meets the house, one narrow connection handles both weight and water. The ledger supports the deck; the flashing protects the wall around it. Both deserve a close look before new boards cover the connection, especially beneath a patio door.
Start with the rules that actually govern the project
Ontario now adopts the National Building Code of Canada 2020 with Ontario amendments through O. Reg. 163/24. The province keeps the current code and compendium links on its Ontario Building Code page. Start there, but do not treat it as one universal ledger schedule for every house. The permitted drawing, verified wall and floor assembly, selected fastener's evaluated instructions, and local building official still control the detail.
Municipal requirements also matter. Oakville's deck page says any deck attached to a house requires a permit and asks for a section showing how it attaches. Toronto's deck guide asks for footing, framing, stair and guard details, plus a site plan. Different municipalities may review the same safe assembly through different forms and zoning checks. Code is provincial; permitting, zoning and the review conversation are local.
What the ledger is really connecting
On a conventional attached deck, joists frame into or bear beside a ledger. The ledger transfers vertical load into a structural rim board, band joist, foundation wall or another specifically designed backing. Separate connectors may also be required to manage lateral forces that try to pull the deck away from the house. The key word is structural. Vinyl siding, fibre-cement siding, exterior insulation, stucco and masonry veneer are finishes or enclosure components. The design must transfer the load through those layers into suitable structural backing.
| Layer or part | Its job | Question the drawing must answer |
|---|---|---|
| Deck ledger | Receives deck joists and transfers load | What size and material is specified? |
| Structural backing | Carries load into the house | What is it, and has its condition been verified? |
| Fasteners or anchors | Connect ledger to backing | Which evaluated product, diameter, spacing and edge distances apply? |
| Water-resistive barrier | Drains incidental wall water | How is continuity restored after cladding is opened? |
| Flashing | Directs water over and away from the ledger | Where do the upper leg, end dams and drip edge terminate? |
| Cladding and clearances | Protect and finish the wall | How can water drain and materials dry without trapping debris? |
Follow the water down the wall
A wall sheds water through overlapping layers. The upper layer laps over the lower layer so water keeps moving outside. Natural Resources Canada's building-envelope guidance describes flashing and a drainage plane as part of the strategy that keeps a structure dry. Check whether water still has a continuous path down and out after the ledger is installed.

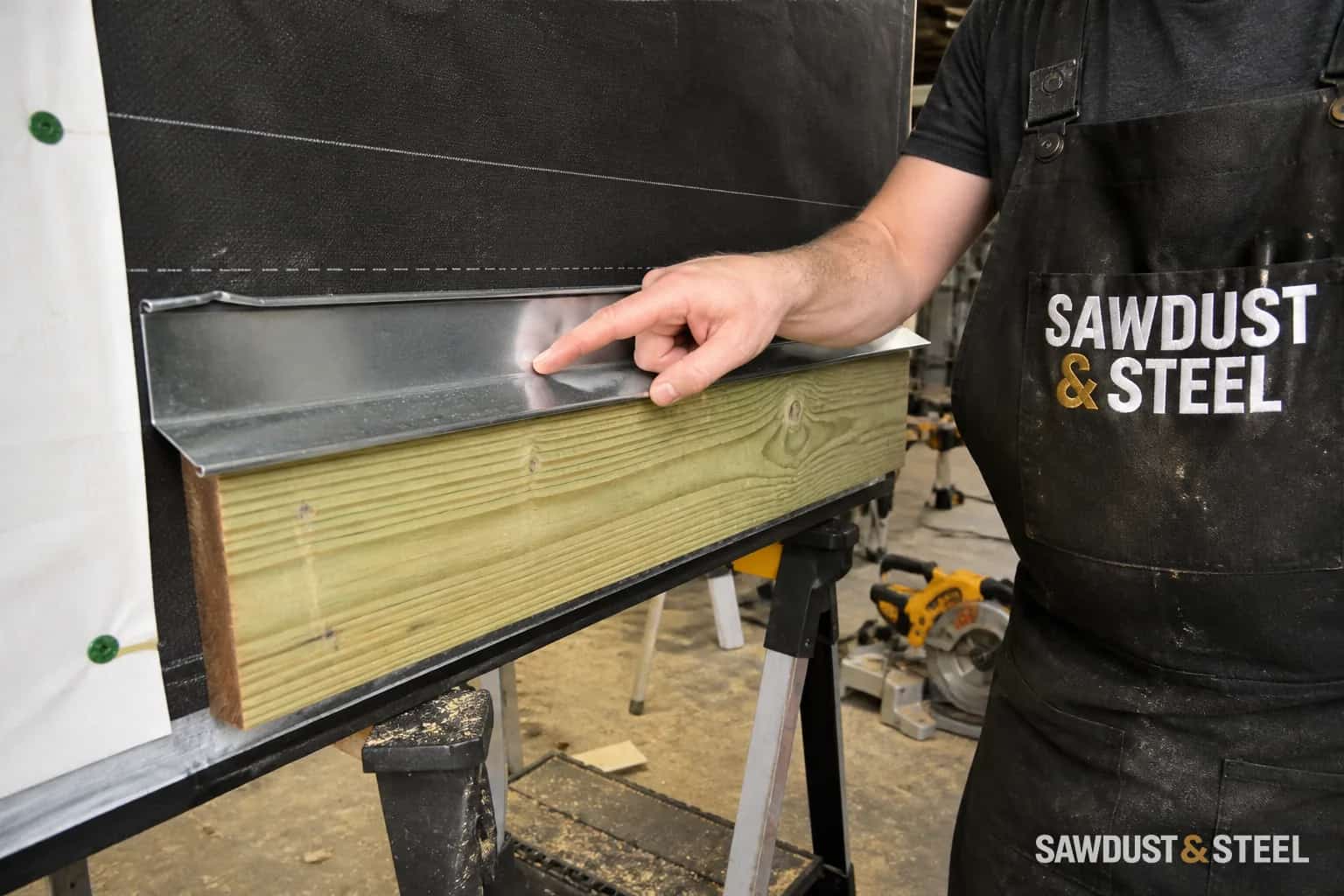

In a typical wood-framed wall, that means removing enough cladding to expose and assess the water-resistive barrier, repairing damaged material, integrating a compatible membrane or flashing behind the upper drainage layer, and directing it over the top of the ledger with a positive drip edge. Ends need thought too. Water arriving at the end of a flashing should be sent out, not sideways into an unprotected cut in the wall.
The Simpson Strong-Tie deck construction guidance likewise calls for approved corrosion-resistant flashing at a deck attached to a wood-frame wall. Its broader Deck Connection and Fastening Guide covers ledger, lateral, joist, beam, post and guard connections. Use the current Canadian product data for the hardware actually specified, rather than an undated spacing table for a different product.
What the construction plan should cover
- Confirm the permit and zoning path. Attached decks generally trigger municipal review. Confirm heritage, conservation, tree and setback issues before ordering material.
- Open the wall deliberately. Remove enough finish to identify sheathing, drainage plane, structural backing, hidden services and any existing damage. Do not fasten through mystery layers.
- Repair before covering. Soft sheathing, a decayed rim board, torn membrane or a leaking door sill is part of the scope now. Repair damaged backing before attaching the ledger.
- Install the approved water-management detail. Integrate compatible membrane and metal flashing in shingle-lap order. Protect penetrations while preserving a route for water to drain out.
- Install the specified structural connection. Use the fastener or anchor, spacing, embedment, washers, edge distances and lateral hardware shown on the accepted design and product instructions.
- Keep the work visible for inspection. Do not hide the ledger, hangers or flashing behind decking or finishes before the required inspection has occurred.
- Photograph the concealed work. Wide shots establish location; close shots show flashing laps, fastener layout, product labels and repaired backing. Keep them with the permit record.
This is not a universal installation recipe. Wall types vary, and exterior insulation, stucco, insulated concrete forms, old plank sheathing and engineered floors all change the detail. Use the sequence to test a proposal: identify, repair, drain, connect, inspect, document. If one verb is missing, stop and ask why.
Patio doors are where tidy drawings meet real snow
Pay particular attention beneath patio doors. There may be little room between the threshold and deck surface, while wind-driven rain, snow and splash all collect there. The door pan, sill flashing, wall drainage plane and ledger cap must work as one drainage sequence. Resolve these connections before the deck height and door threshold are fixed.
Brick veneer, stone veneer and stucco need their own answer
Brick veneer is not a structural foundation wall. It is cladding tied back to the structure with an air space behind it. Ask for a section drawing if a proposal says only 'bolt through the brick'. Crushing the cavity, relying on veneer to carry the deck, or blocking drainage can create structural and moisture problems at once. A designed connection may pass through using specified spacers and anchors into verified framing, with the connection designed for the actual wall.
Stone veneer, exterior insulation systems and stucco raise similar questions about load transfer, compression, drainage and repairability. When the wall cannot accept a simple, inspectable ledger, consider a freestanding deck with a beam and footings near the house. It uses more framing, but can avoid a difficult load-bearing attachment through the wall. Compare helical piles versus concrete footings, then confirm the system on the permit drawings.
Fastener compatibility is not a cosmetic detail
Pressure-treated lumber, exterior moisture, de-icing salts and dissimilar metals can accelerate corrosion. Use connectors, structural fasteners and flashing that are mutually compatible and approved for the exposure. Use the fasteners specified for each connector. The manufacturer names the fastener because capacity belongs to the whole assembly, not to whatever happens to fit through the hole.
This is also why one generic ledger spacing chart is a bad homeowner takeaway. The American Wood Council's connection note explains the danger of nail-only ledgers, but its American tables are not an Ontario design. Spacing changes with span, load, fastener, substrate and geometry. Ask for the exact product and accepted spacing. If the answer is 'lots of screws,' the drawing is unfinished.
Warning signs to look for from a safe position
- Look from below for dark staining, softened wood, fungi, rust streaks or white mineral trails near the ledger and door opening.
- Check whether flashing visibly projects over the ledger and whether its ends discharge outside the wall assembly.
- Look for a ledger installed directly over cladding, fastened only with nails, or apparently supported by brick veneer.
- Watch the connection while another adult walks normally on the deck. Visible separation or movement deserves immediate professional assessment. Do not stage a bounce test.
- Inspect the interior rim area, basement ceiling or crawlspace where accessible. Staining beneath the door or at fastener penetrations can reveal a leak before the exterior looks dramatic.
- Check municipal property records for a permit. Lack of a record does not prove failure, but it changes how much evidence is available when the connection is concealed.
Repair, rebuild or go freestanding?
| Condition | Likely direction | What must be verified |
|---|---|---|
| Sound structure, deficient top flashing | Open cladding and rebuild water-management layers | Full drainage path, concealed damage and fastener penetrations |
| Sound ledger, wrong or incomplete fasteners | Engineered retrofit may be possible | Backing, edge distances, existing holes and lateral connection |
| Rotten ledger or rim board | Shore as designed, remove and repair structure | Extent of decay and continuity of floor/wall loads |
| Brick or complex cladding with no approved detail | Freestanding deck or engineered through-connection | Foundation layout, clearances and cladding drainage |
| Unknown concealed assembly | Selective opening before design | Actual materials and condition, not assumptions |
The quote should name its assumptions about concealed framing and explain how repairs will be priced if opening the wall reveals damage. For permit context, read Ontario deck permit rules. Once the structure is settled, compare cedar, composite and pressure-treated decking.
The homeowner's five-question drawing review
- What exact part of the house carries the ledger load?
- How does water from the wall drain over, around and past this connection?
- What exact fasteners, anchors and lateral connectors are specified?
- How are brick, insulation, stucco, siding and the patio-door sill handled?
- Which details remain exposed for inspection, and what concealed-work photos will be delivered?
